This plan is applicable to large biomass pellet production lines.

Capacity: 25-30 tons/hour

Raw Material: Sawdust / Wood / Straw

Applications:Industrial Boilers / Biomass Power Plants / Wood Processing

Transformer: ≥ 1100kVA.

How to build a biomass pellet production line?

Examine the quality, price, and quantity of raw materials, and also consider the factors of long-term supply (i.e., long-term control), so that we can plan the configuration of the production line and analyze the cost of raw materials according to the configuration of the production line. Once the raw materials have been decided, it is necessary to determine the plant. The construction of the plant or looking for a place that is generally close to the raw material or convenient transportation. It's best to have both. Energy consumption. The pelletizing industry consumes a lot of electricity. After determining the production capacity, purchase a transformer that matches the production capacity according to the equipment power selection provided by the equipment manufacturer. Purchase equipment. Before buying equipment, you must first understand the product quality of the equipment manufacturer. In the network environment, it is often difficult to distinguish between good and bad product quality. For equipment installation and commissioning, Rongda will send technical personnel to provide guidance, installation, commissioning and training.

【Case】25-30 tons/hour granule production line

The customer is a pellet factory in Vietnam.

Nature of construction: new

Construction scale: annual output of 50000-60000 tons of granules

Production shift system and employment quota: After completion and production, the employment quota is 8 people, and a shift system is implemented, each shift is 8 hours, and the production days are 300 days.

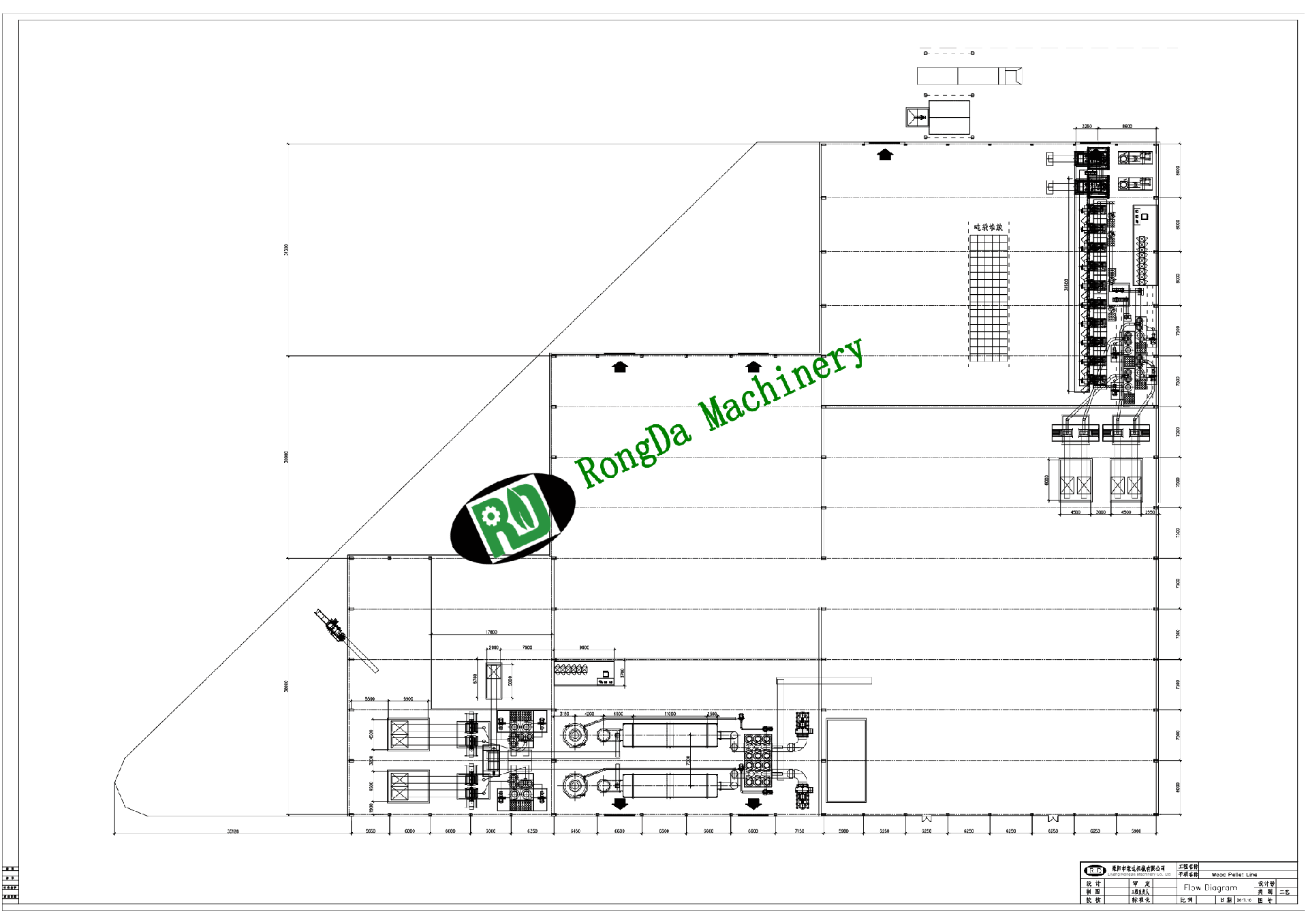

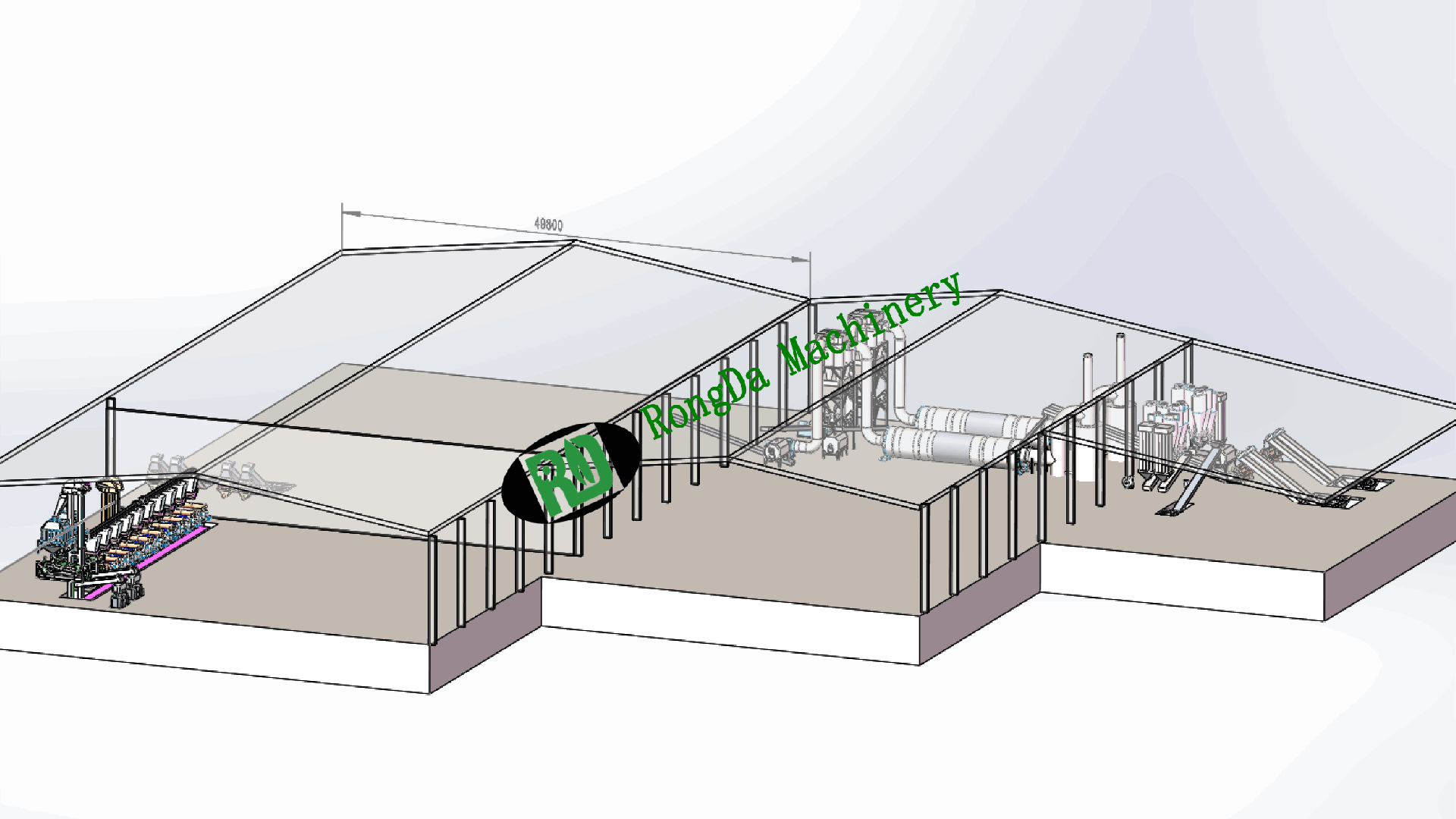

Production line design drawing:

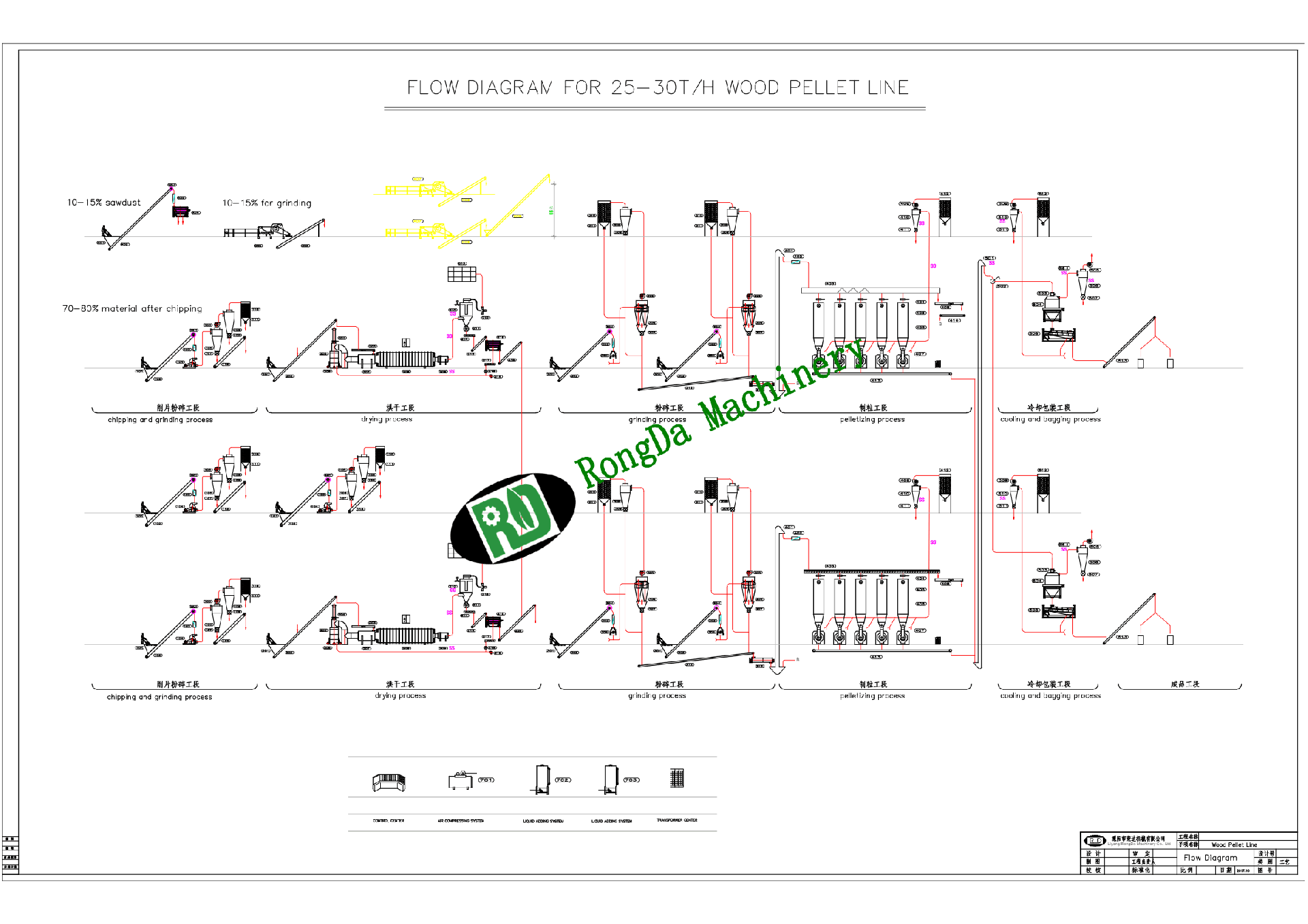

Process:

Core equipment of the project:

	The name of the device	Model	Yield	power consumption
	Pellet machine	RD678MX	2.5-3	196.50

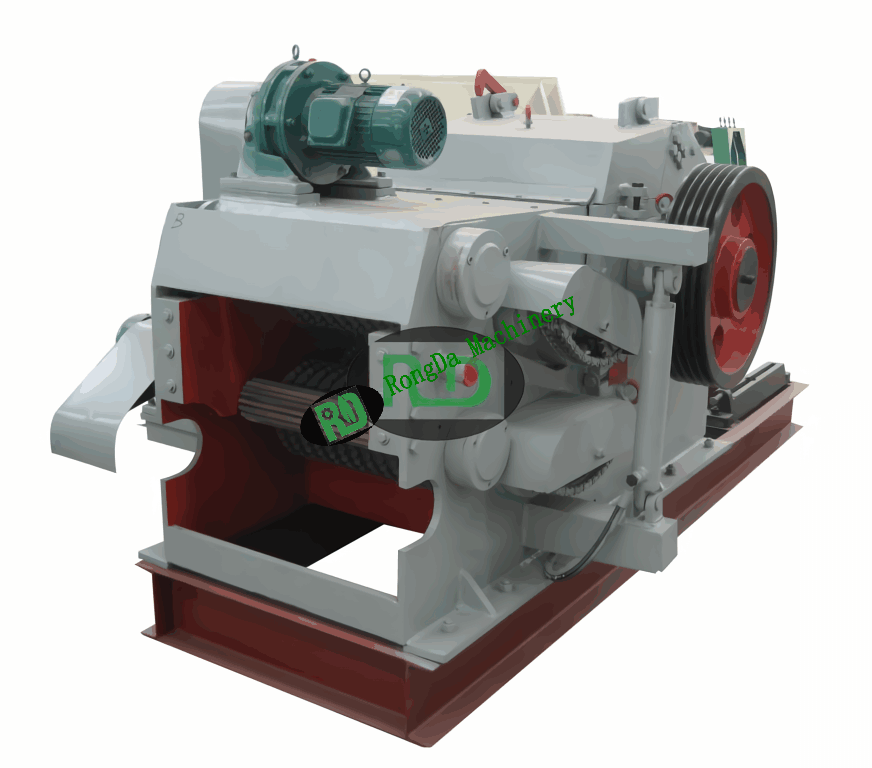

	Crushing equipment	BX218D	8-10	140KW
	Pulverizer	SFSP68x120	3-4	160.00
	Preliminary cleanup	SCY150x2500	8-12	2.20

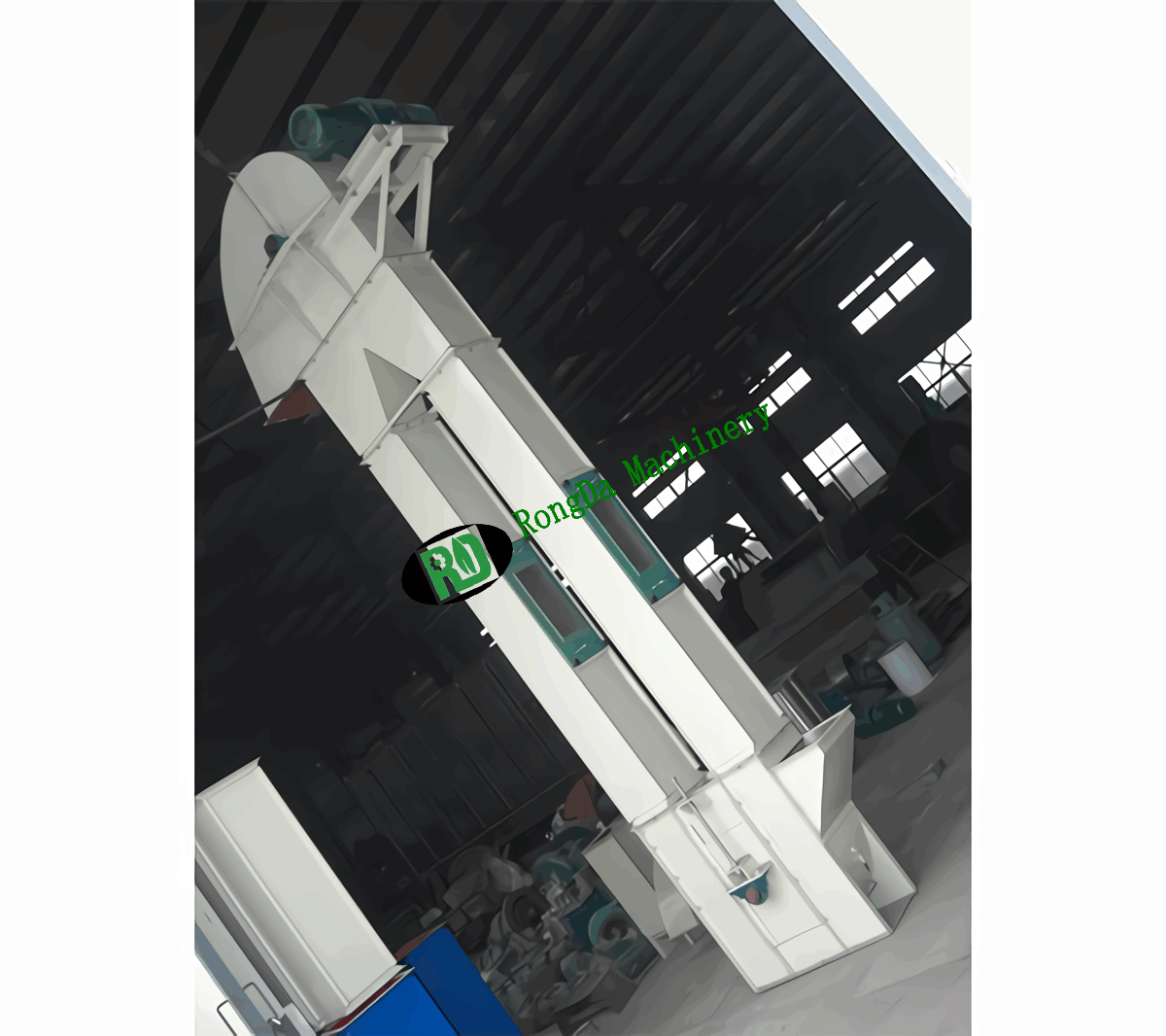

	Conveying equipment	TDTG60/33	67	5
	Filtering	SFJH150×1d	15-20	7.50
	Cooling equipment	SKLB8	10-20	0.75

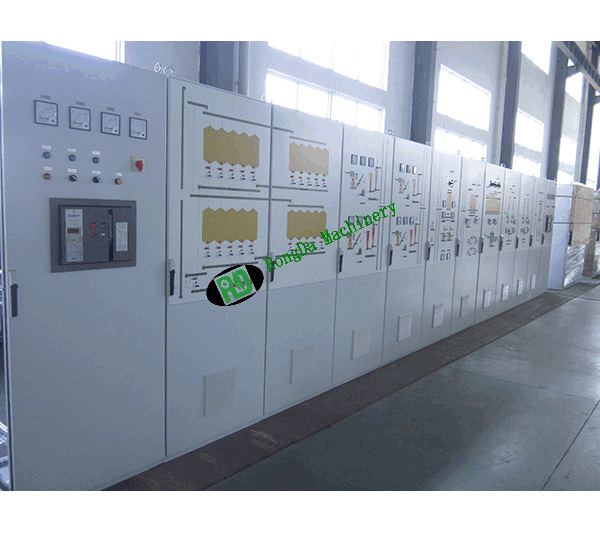

	Electric control
Other equipment	Packing machine/transport system/electric control/dust removal

‍Get a plan & a quote‍

Customer's main raw material: sawdust/wood

Packaging system included (Y/N): Yes, this is included in the complete product line

With or without boiler system (Y/N): No boiler

Is it a custom solution?(Yes/No): Yes, it's a custom plan.

Scope of application: This production line is used to produce wood pellets

The installation period of this project: 90 days

Number of required installers: 5 people

Service Support:

Drawing:

Flow chart;

installation drawings;

operating instructions;

Layout of wood pellet production line in workshop;

Equipment installation drawing;

steel bracket installation drawing;

Detailed steel structure drawings and bill of materials

‍Get a plan & a quote

Whether the customer comes to the factory for inspection (Y/N): pay online and place an order

Problems in the installation process: Rongda's professional installation team can help customers install and solve problems in the installation process.

One-stop after-sales service:

send two technical and installation engineers to guide the installation. After the installation and commissioning were completed, we conducted operation training for the customer's workers;

Train workers on how to maintain and protect, and depending on the function, we will develop complete maintenance rules for you, including how, when, and by whom.

Our company's after-sales department will regularly call customers to inquire about the maintenance situation and provide suggestions. In addition to wearing parts, our company provides one year free warranty and permanent free technical support.
