This plan is applicable to medium wood pellet production lines.

Capacity: 10-12 tons/hour

Raw material: sawdust / wood / sawdust / shavings

Applications: Industrial Boilers/Biomass Power Plants/Wood Processing

Transformer: ≥ 1100kVA.

How to build a biomass pellet production line?

Examine the quality, price, and quantity of raw materials, and also consider the factors of long-term supply (i.e., long-term control), so that we can plan the configuration of the production line and analyze the cost of raw materials according to the configuration of the production line. Once the raw materials have been decided, it is necessary to determine the plant. The construction of the plant or looking for a place that is generally close to the raw material or convenient transportation. It's best to have both. Energy consumption. The pelletizing industry consumes a lot of electricity. After determining the production capacity, purchase a transformer that matches the production capacity according to the equipment power selection provided by the equipment manufacturer. Purchase equipment. Before buying equipment, you must first understand the product quality of the equipment manufacturer. In the network environment, it is often difficult to distinguish between good and bad product quality. For equipment installation and commissioning, Rongda will send technical personnel to provide guidance, installation, commissioning and training.

【Case】10-12tons/hour granule production line

The customer is a pellet factory in Vietnam.

Nature of construction: new

Construction scale: annual output of 24000-28000 tons of granules

Number of installers required: 4 people

The production line operators: 8 people

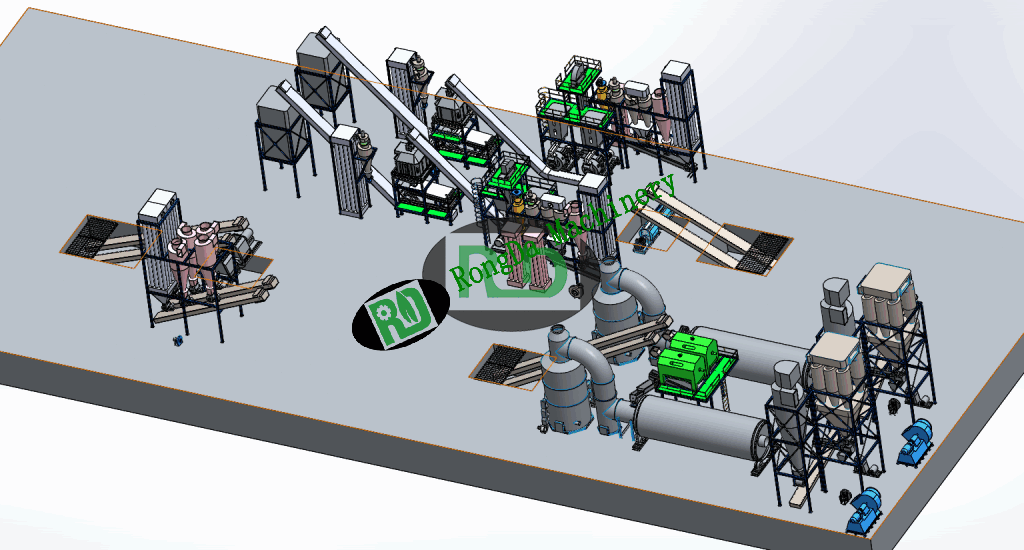

Production line design drawing:

process flow:

Core equipment of the project:

	The name of the device	Model	Yield	Power consumption
	Pellet machine	RD678MX	2.5-3	196.50

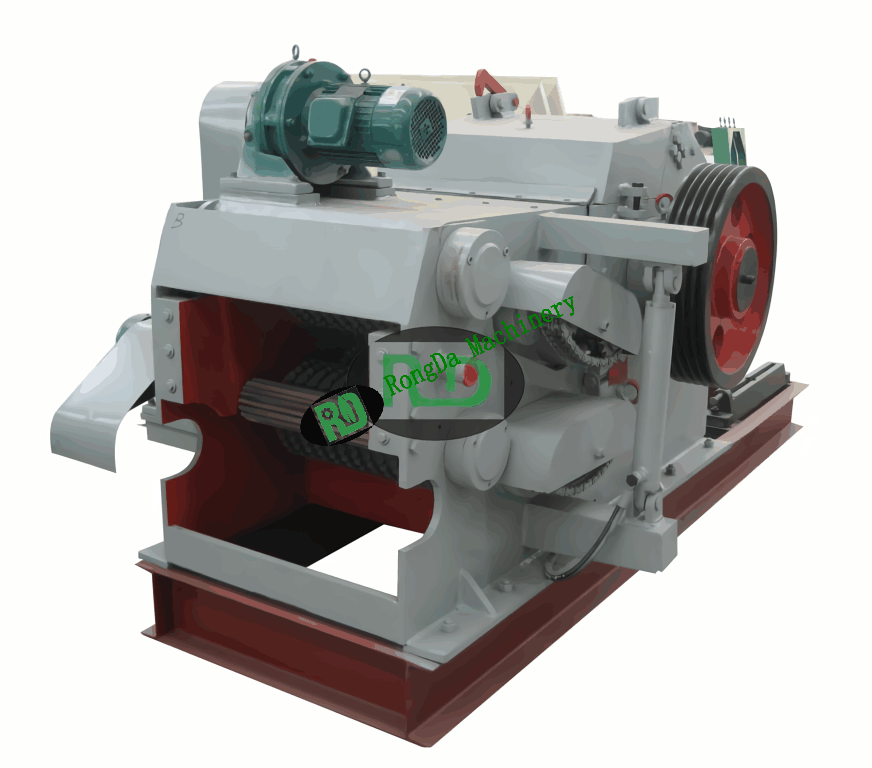

	Crushing equipment	BX218D	8-10	140KW

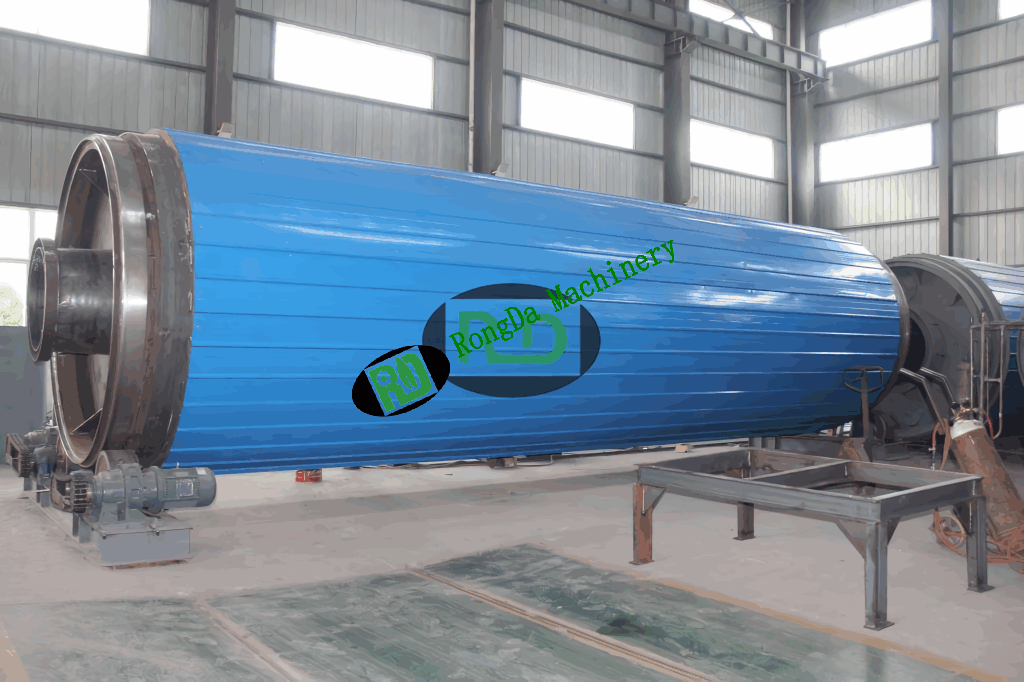

	Drying equipment	Φ3.0x9m	5-6	3.2*2

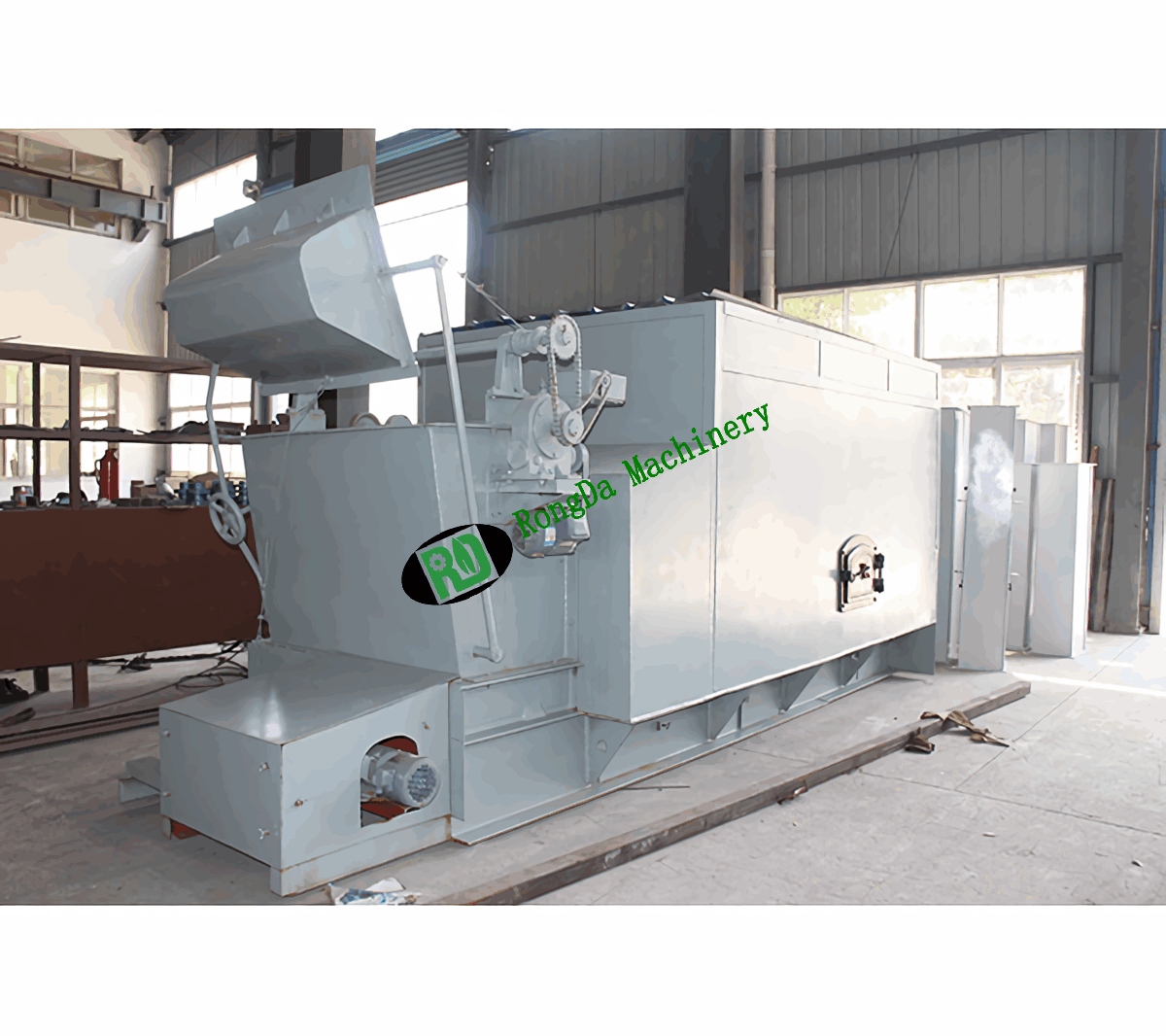

	Hot blast stove	4.5 million kcal	4-6	4.5
	Wide crusher	SFSP68x120	3-4	160.00
	Pre- cleaning Machine	SCY150x2500	8-12	2.20
	Rotary Screen	SFJH150×1d	5-20	7.50
	Pendulum cooling machine	SKLB8	10-20	0.75

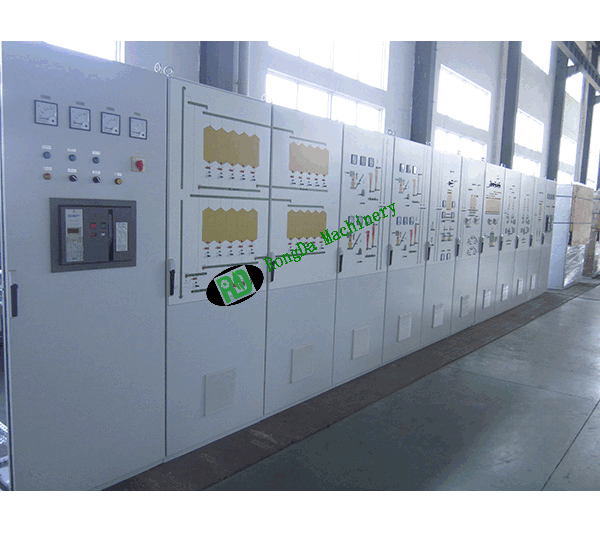

	Electric control
Other equipment	Packing machine/transport system/electric control/dust removal

Get a plan & a quote

1.RD678MX pellet machine*196.5KW;

2. Pulverizer*160KW;

3. Cooler * SKLB8;

4. Grading screen *SFJH150×1d;

5. electric control cabinet;

6. Packing machine and other auxiliary equipment Customer's main raw materials: 50% sawdust, 50% shavings (humidity 12-15%)

Customer demand finished product size: 8mm

Packaging system included (Y/N): Yes, this is included in the complete product line

With or without boiler system (Y/N): Yes

boiler Is it a customized solution? (Yes/No): This is a customized solution for our customers.

Scope of application: This production line is used to produce wood pellets The installation period of this project is 60 days

Number of required installers:4 people

Service Support:

Drawing:

Flow chart;

installation drawings;

operating instructions;

Layout of wood pellet production line in workshop;

Equipment installation drawing;

steel bracket installation drawing;

Detailed steel structure drawings and bill of materials

‍Get a plan & a quote

Whether the customer comes to the factory for inspection (Y/N): pay online and place an order

Problems in the installation process: Rongda's professional installation team can help customers install and solve problems in the installation process.

One-stop after-sales service:

send two technical and installation engineers to guide the installation. After the installation and commissioning were completed, we conducted operation training for the customer's workers;

Train workers on how to maintain and protect, and depending on the function, we will develop complete maintenance rules for you, including how, when, and by whom.

Our company's after-sales department will regularly call customers to inquire about the maintenance situation and provide suggestions. In addition to wearing parts, our company provides one year free warranty and permanent free technical support.
