The difference between ring die and flat die granulator and the guide

Today, pellet machines play a vital role in the pellet production industry. It is used to develop the wet powder into the required particles, and can also crush the block dry material into the required particles, which is widely used in feed, fertilizer, energy, chemical and other industries. Among the many pellet models, the ring die pellet machine and the die pellet machine are two major series, which have different design characteristics and application scenarios.

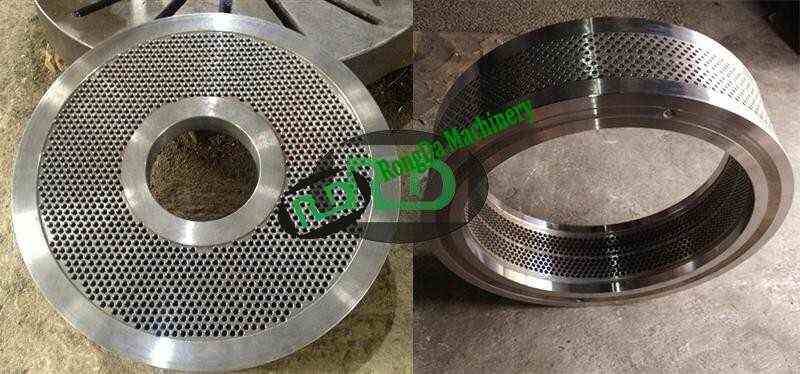

First of all, let's look at the difference between the model design of the ring die pellet machine and the model pellet machine. In the way of feeding, the ring mold adopts mechanical forced feeding, while the flat mold relies on the material's own weight to enter the pressing chamber vertically, which can be fed evenly. In terms of pressure, the ring die is limited by the diameter of the die, and the pressure is limited. The flat die can increase the internal bearing space, enhance the bearing capacity of the pressure wheel, and improve the pressing force. In discharging mode, the ring die has high speed and high breakage rate; The flat die has low speed and low breakage rate. In addition, the pressure wheel adjustment method is also one of the differences between the two.

In addition to the design differences, we also need to judge how to choose the pellet machine suitable for their needs from the aspects of price, output, particle finish and compression ratio. The price of the ring die pellet machine is much higher than that of the flat die pellet machine, and the output, particle finish and compression ratio are different.

In summary, the ring mold granulator and the mold granulator have their own strengths in the particle industry. If the yield and compression ratio of granulation are not high (less than 800 kg an hour), it is recommended to choose a flat die granulator; If the compression ratio and appearance requirements of pelletizing products are high, and the yield is large, the choice of ring mold particles is more appropriate.

Abstr: There are design differences between ring die granulator and die granulator in feeding mode, pressure, discharge mode, etc., and there are also differences in price, yield, particle finish and compression ratio. Choosing a pellet machine that suits your needs needs to take these factors into account.
