Northeast China 5-6 tons per hour granule production line

Northeast 5-6 t/h wood pellet production line solution

Capacity: 5-6 tons/hour

Raw material: sawdust / wood / sawdust / shavings

Applications: Industrial boilers/biomass power plants/wood processing/home fireplaces

   :≥1100kVA。

How to build a biomass pellet production line?

Examine the quality, price, and quantity of raw materials, and also consider the factors of long-term supply (i.e., long-term control), so that we can plan the configuration of the production line and analyze the cost of raw materials according to the configuration of the production line. Once the raw materials have been decided, it is necessary to determine the plant. The construction of the plant or looking for a place that is generally close to the raw material or convenient transportation. It's best to have both. Energy consumption. The pelletizing industry consumes a lot of electricity. After determining the production capacity, purchase a transformer that matches the production capacity according to the equipment power selection provided by the equipment manufacturer. Purchase equipment. Before buying equipment, you must first understand the product quality of the equipment manufacturer. In the network environment, it is often difficult to distinguish between good and bad product quality. For equipment installation and commissioning, Rongda will send technical personnel to provide guidance, installation, commissioning and training.

【Case】5-6 tons/hour granule production line

The customer is a pellet plant in Northeast China.

Nature of construction: new

Construction scale: annual output of 2-26,000 tons of granules

Number of installers required: 2 instructing installers

The production line operators: 3-4 people

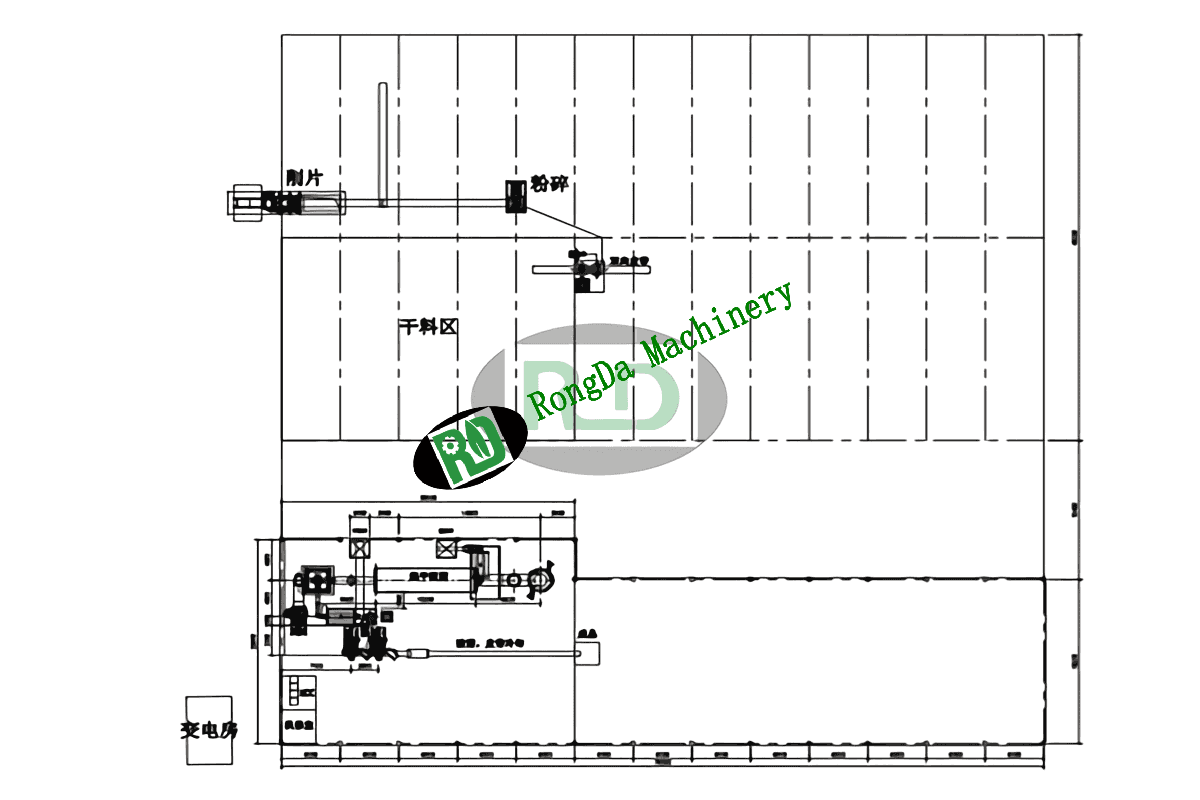

Production line design drawing:

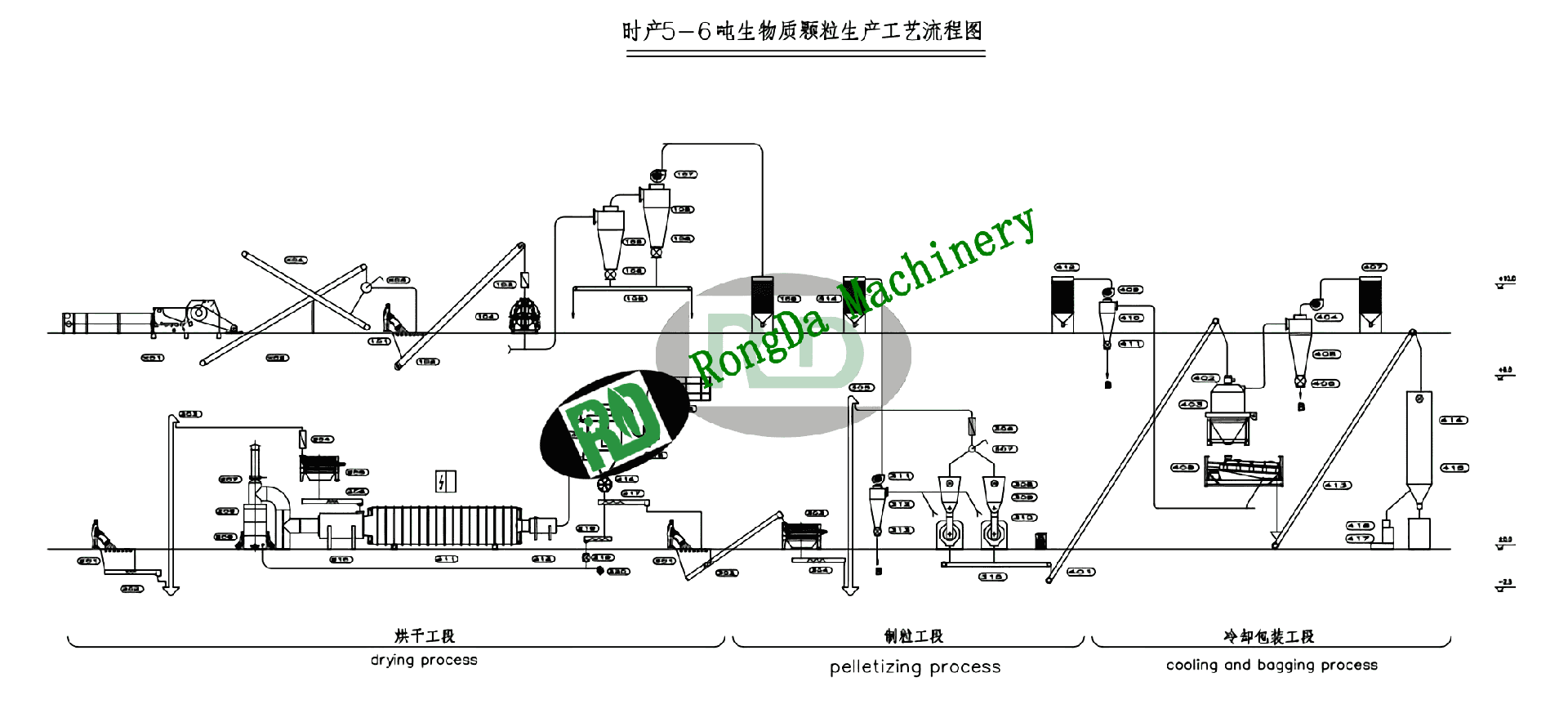

Process:

Project Core Equipment:

	The name of the device	Model	Capacity	power consumption
	Thousand Pellet	RD678MX	2.5-3	206
	Wide crusher	SFSP66x100	6-8	132
	Dryer	Φ2.6x10	3-4	5.5*2
	Pre- cleaning Machine	SCY150x2500	5-6	2.20
	Chipper	BX216	3-4	61
	Rotary Screen	SFJH130x1d	15-20	7.50
	Cooling equipment	SKLB6	15	1.5
Other equipment	Packing machine/transport system/electric control/dust removal

The core equipment of the project:

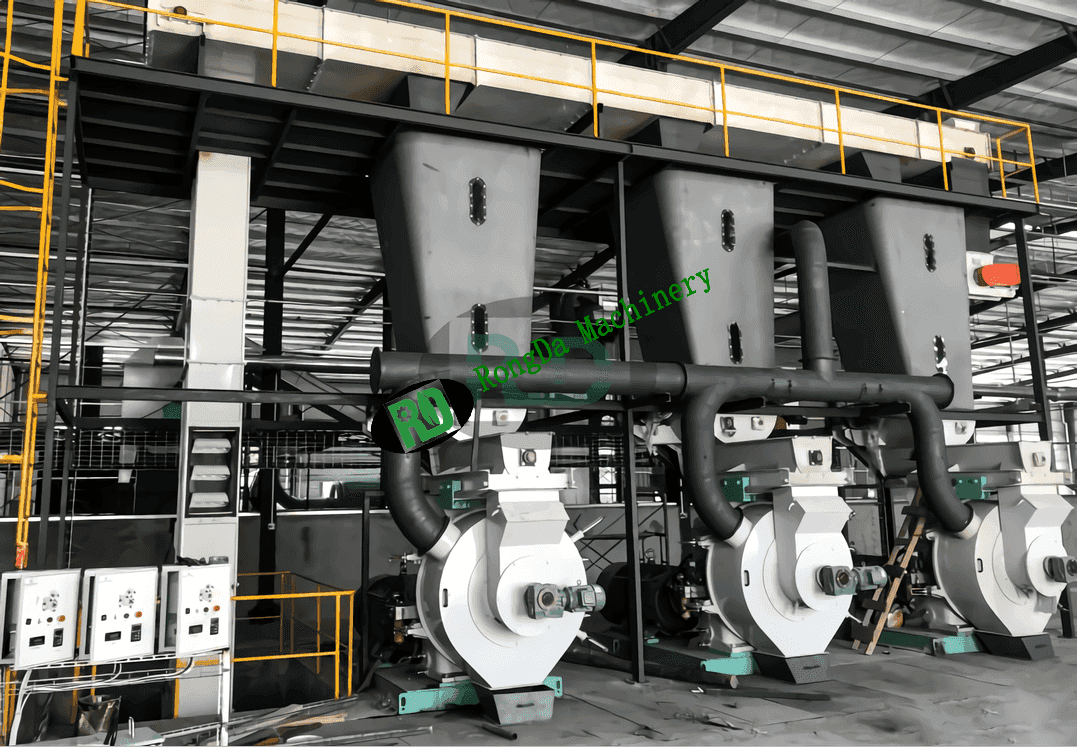

1.RD678MX Pellet Machine*

206KW;

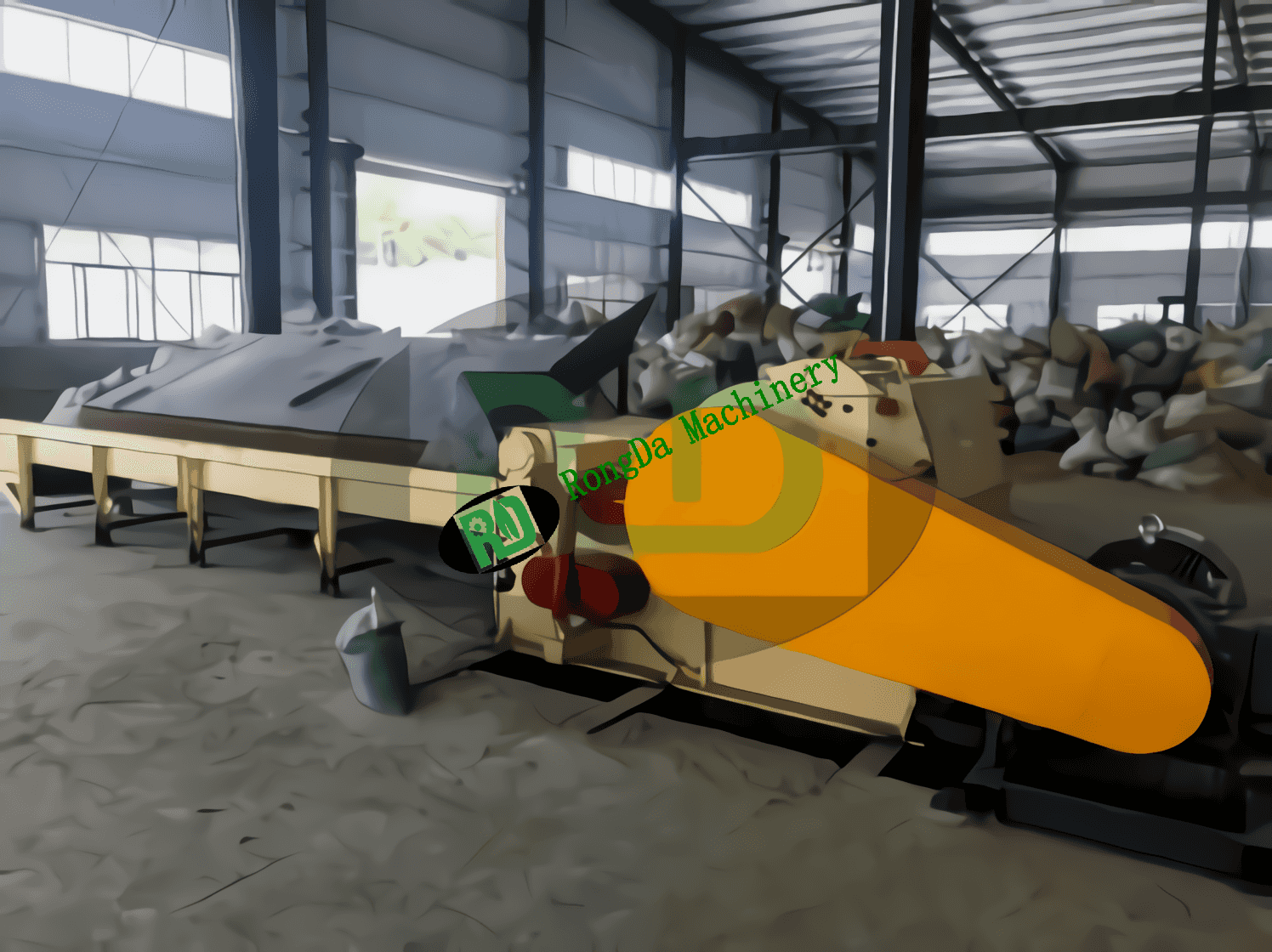

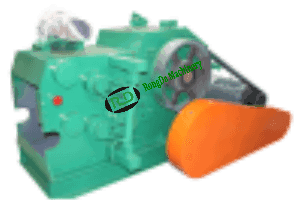

2.Chipper*BX216;

3.Wide crusher*SFSP66x100；

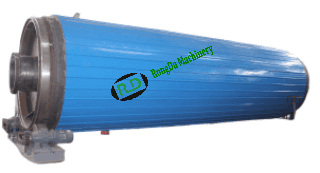

4.Dryer*Φ2.6x10；

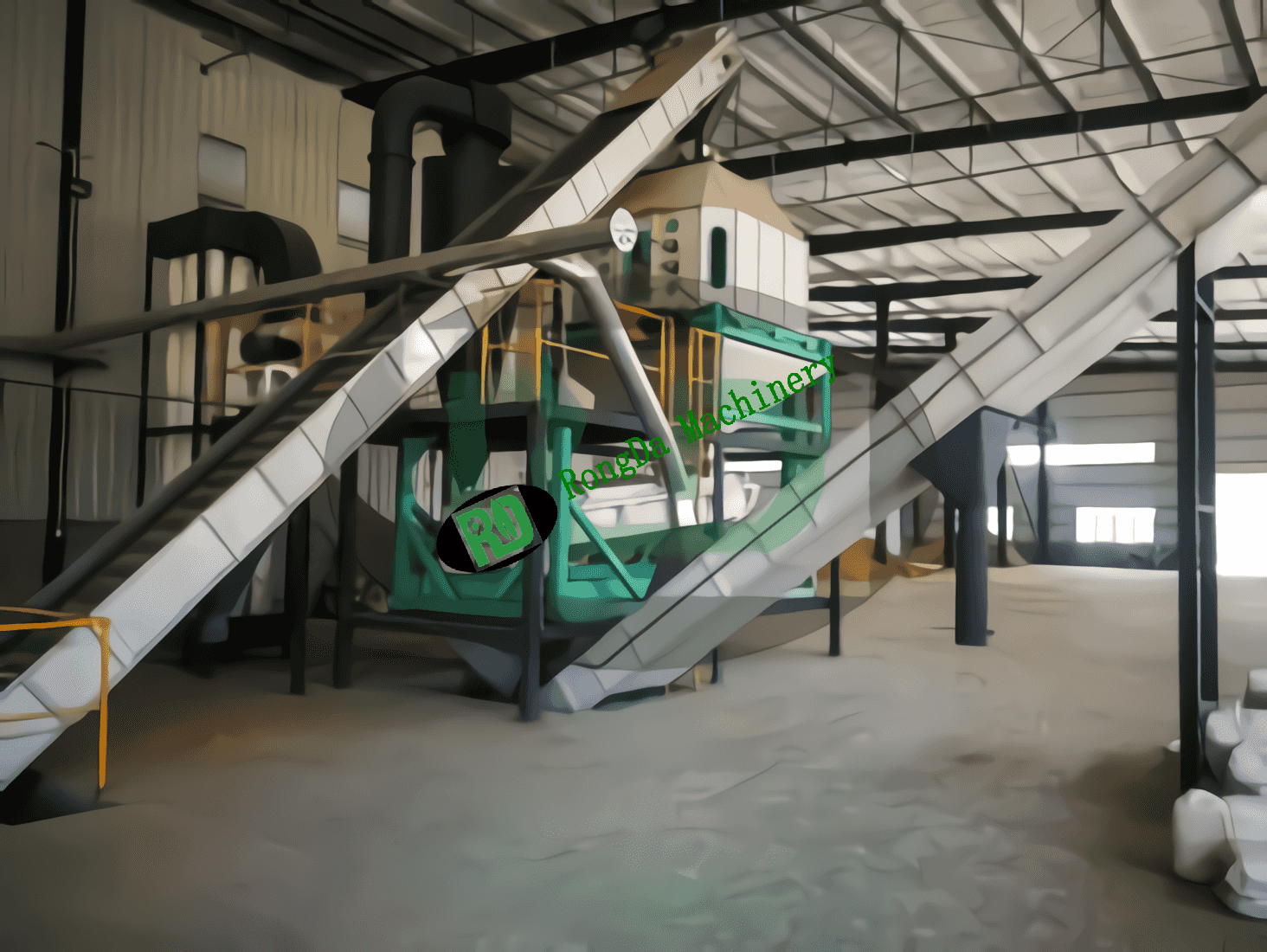

5. Cooler * SKLB6;

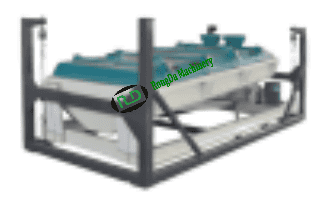

6.Rotary Screen*SFJH130×1d；

7. electric control cabinet;

8. Packing machine and other auxiliary equipment

The main raw material of the customer: sawn wood with a water content of less than 40%, and the moisture content is about 15% after drying

Customer demand finished product size: 8-10mm

Packaging system included (Y/N): Yes, this is included in the complete product line

With or without boiler system (Y/N): Yes, the automatic spray furnace consumes about 120KG of dry sawn timber per ton of dry material dried

Is it a customized solution? (Yes/No): This is a customized solution for our customers.

Scope of application: This production line is used to produce wood pellets

The installation period of this project is 45 days

Number of installers required: 2 people

Service Support:

Drawing:

Flow chart;

installation drawings;

operating instructions;

Layout of wood pellet production line in workshop;

Equipment installation drawing;

steel bracket installation drawing;

Detailed steel structure drawings and bill of materials

Get plans and quotes

Whether the customer comes to the factory to check (yes/no): pay online and place an order

Problems in the installation process: The installation team can help customers install and solve problems in the installation process.

One-stop after-sales service:

send two technical installation engineers to guide the installation. After the installation and commissioning are completed, we have carried out operation training for the customer's workers;

Train staff on how to maintain and protect, and depending on the function, we will develop complete maintenance rules for you, including how, when, and by whom.

Our company's after-sales department will call customers regularly to inquire about the maintenance situation and provide suggestions. In addition to wearing parts, our company also provides one-year free warranty and permanent free technical support.
