France 1 ton per hour granule production line

French 1 ton/h wood pellet production line solution

Capacity: 1 ton/h

Raw materials: wood/waste wood boards/wood chips

Applications: Industrial boilers/biomass power plants/wood processing/home fireplaces

  :≥1100kVA。

How to build a biomass pellet production line?

Examine the quality, price, and quantity of raw materials, and also consider the factors of long-term supply (i.e., long-term control), so that we can plan the configuration of the production line and analyze the cost of raw materials according to the configuration of the production line. Once the raw materials have been decided, it is necessary to determine the plant. The construction of the plant or looking for a place that is generally close to the raw material or convenient transportation. It's best to have both. Energy consumption. The pelletizing industry consumes a lot of electricity. After determining the production capacity, purchase a transformer that matches the production capacity according to the equipment power selection provided by the equipment manufacturer. Purchase equipment. Before buying equipment, you must first understand the product quality of the equipment manufacturer. In the network environment, it is often difficult to distinguish between good and bad product quality. For equipment installation and commissioning, Rongda will send technical personnel to provide guidance, installation, commissioning and training.

【Case】12-16 tons/hour granule production line

The customer is a pellet factory in France.

Nature of construction: new

Construction scale: annual output of 30,000 tons of granules

Number of installers required: 2 people

The production line operators: 3-4 people

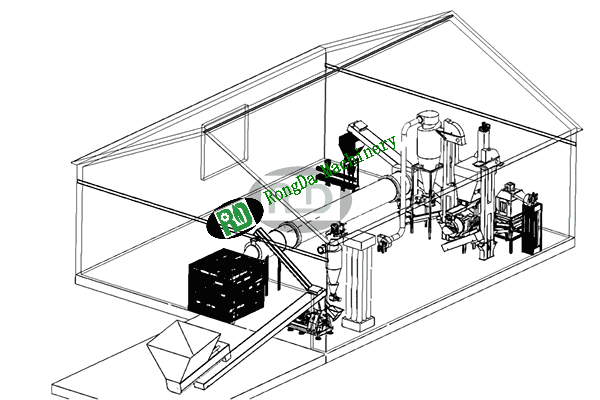

Production line design drawing:

Process:

Core equipment of the project:

	The name of the device	Model	Capacity	power consumption

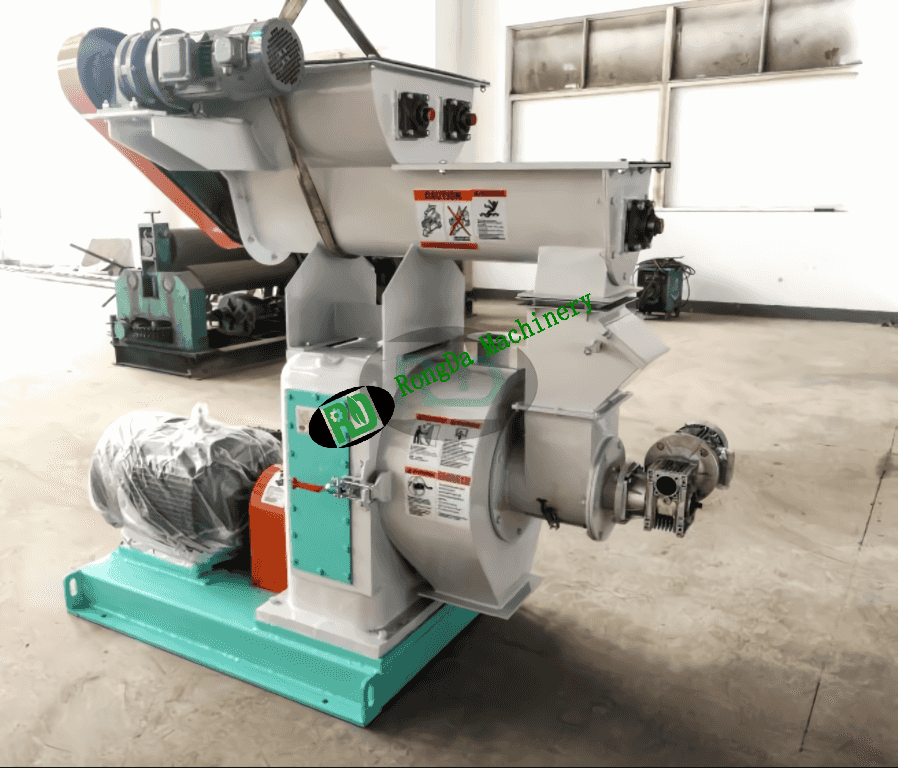

	Pellet mill	RD508MX	1.5-2	110

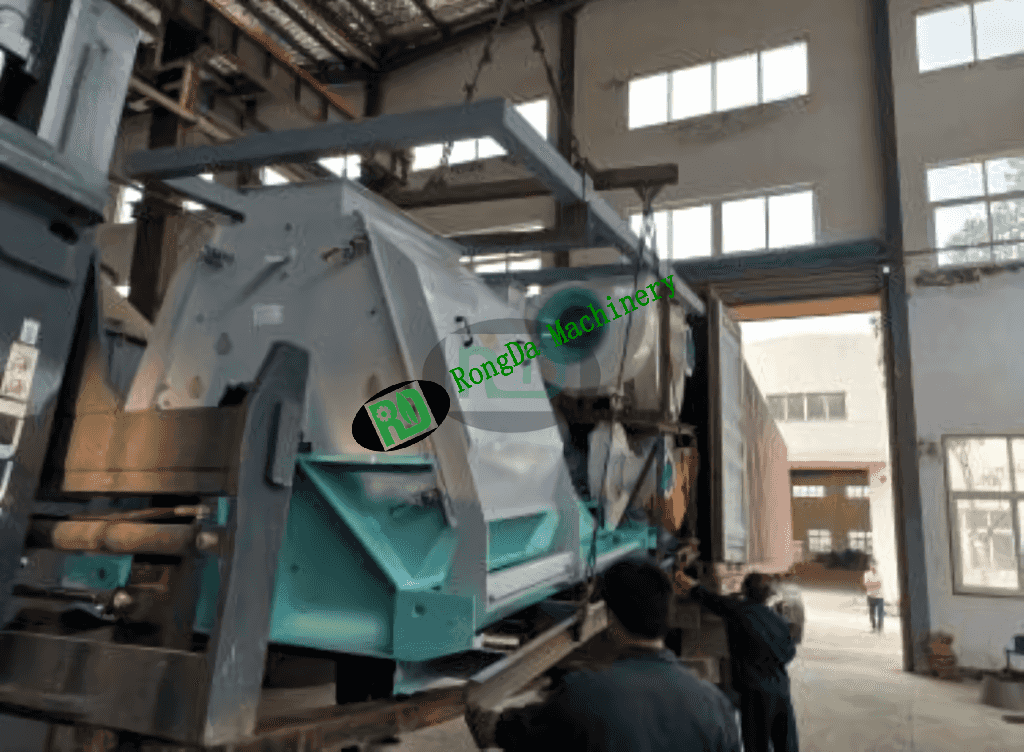

	Wide crusher	SFSP66x80	3-4	110
	Pre- cleaning Machine	SCY63	1-2	0.75

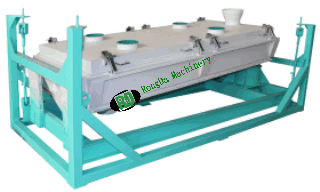

	Rotary Screen	SFJH130×2	1000kg	3.0*2
	SKLN cooling machine	SKLN4	5-10	1.5
Other equipment	Packing machine/transport system/electric control/dust removal

The core equipment of the project:

1.SZLH420Pellet mill*110KW;

2.Wide crusher*SFSP66×80;

3.Vibration grading screenSFJH130×2;

4. electric control cabinet;

5. Packing machine and other auxiliary equipment

Customer's main raw material: wood/wood chips

Customer demand finished product size: 6-10mm

Packaging system included (Y/N): Yes, this is included in the complete product line with large diameter dust bags and dust hoppers

With or without boiler system (Y/N): No boiler

Is it a customized solution? (Yes/No): This is a customized solution for our customers.

Scope of application: This production line is used to produce wood pellets

The installation period of this project: 30 days

Number of installers required: 2 people

Service Support:

Drawing:

Flow chart;

installation drawings;

operating instructions;

Layout of wood pellet production line in workshop;

Equipment installation drawing;

steel bracket installation drawing;

Detailed steel structure drawings and bill of materials

Get plans and quotes

Whether the customer comes to the factory to check (yes/no): pay online and place an order

Problems in the installation process: The installation team can help customers install and solve problems in the installation process.

One-stop after-sales service:

send two technical installation engineers to guide the installation. After the installation and commissioning are completed, we have carried out operation training for the customer's workers;

Train staff on how to maintain and protect, and depending on the function, we will develop complete maintenance rules for you, including how, when, and by whom.

Our company's after-sales department will call customers regularly to inquire about the maintenance situation and provide suggestions. In addition to wearing parts, our company also provides one-year free warranty and permanent free technical support.
